Steel Structure Bridge Construction

Steel Structure Bridge Construction Features

Steel structure bridges are widely used for expressways, railway bridges, urban viaducts, and long-span bridge applications because of their high strength, lightweight design, and rapid construction capabilities. Among various steel bridge systems, steel box girder bridges are the most widely adopted due to their excellent structural performance, durability, and suitability for factory prefabrication.

Unlike conventional concrete bridge construction, most steel box girder components are fabricated under strict factory quality control before being transported to the construction site for assembly. The construction process focuses on efficient transportation, precise lifting, and rapid installation of prefabricated steel segments. Advanced fabrication technology, heavy lifting equipment, and accurate connection methods enable faster project delivery while minimizing site occupation, reducing traffic disruption, and ensuring consistent construction quality.

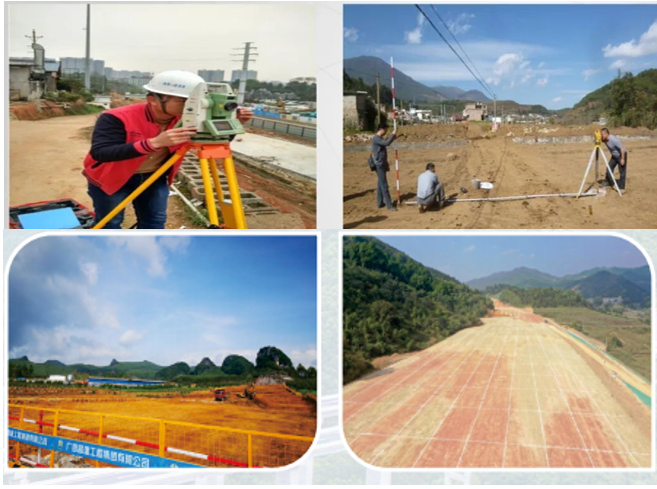

1. Site Preparation

Keywords

• Construction site setup

• Traffic management

• Temporary facilities

Description
Steel structure bridge projects are designed for rapid construction with minimal site occupation. Most steel box girder segments are fabricated in factories, while the construction site focuses primarily on transportation, assembly, and installation.

Main activities include

• Setting up construction areas and lifting zones

• Preparing crane access and temporary working platforms

• Installing traffic protection systems

• Planning steel box girder segment transportation routes

Key Considerations

• Minimize impact on existing traffic

• Ensure efficient transportation and lifting operations

• Prepare a safe and organized assembly area

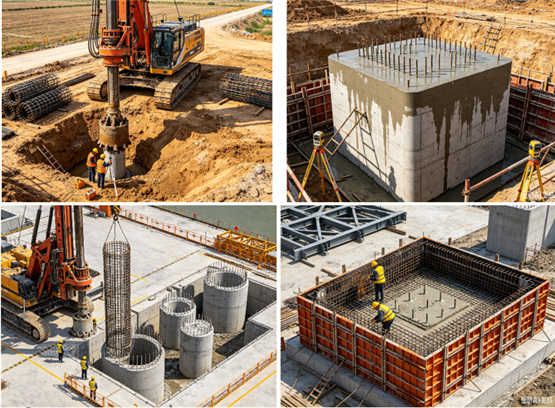

2. Foundation Construction

Keywords

• Pile foundation

• Pier foundation

• Concrete structure

Description

The foundation system provides stable support for steel structure bridge piers and ensures long-term structural performance.

Main activities include

• Bored pile construction

• Reinforcement installation

• Concrete foundation construction

• Pile cap construction and foundation testing

Key Considerations

• Ensure foundation accuracy

• Maintain structural stability

• Complete foundation works before steel girder erection

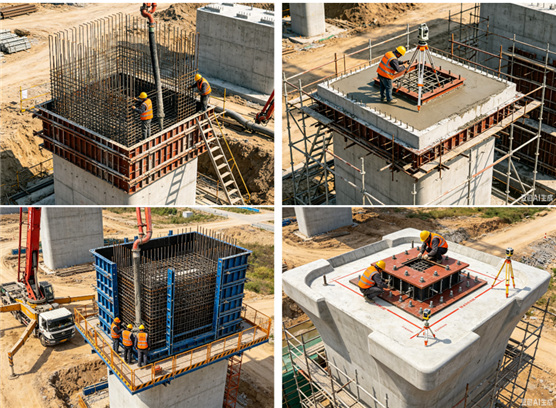

3. Pier Construction

Keywords

• Concrete pier

• Bearing installation

• Precision positioning

Description:

Bridge piers provide permanent support for the steel structure bridge. Accurate pier construction and bearing installation are essential for the successful erection of steel box girder segments.

Main activities include

• Pier reinforcement and concrete pouring

• Pier cap construction

• Bridge bearing installation

• Surveying and elevation control

Key Considerations

• High precision in bearing positioning

• Stable support conditions

• Prepare for rapid steel girder installation

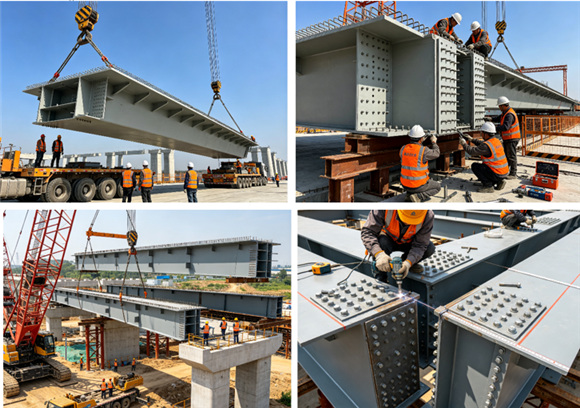

4. Girder Installation

Keywords

• Steel box girder segments

• Bolted connection

• Heavy lifting equipment

Description

Steel box girder segments are fabricated in specialized factories and transported to the construction site for rapid assembly. Each segment is precisely manufactured and connected using high-strength bolts or welding to form the complete steel structure bridge.

Main activities include

• Factory fabrication and quality inspection

• Transportation of steel box girder segments

• Crane lifting and segment positioning

• High-strength bolt installation and tightening

• Field welding (where required)

Key Considerations

• Fast erection with minimal on-site work

• No requirement for a large precasting yard

• Accurate segment alignment and connection quality

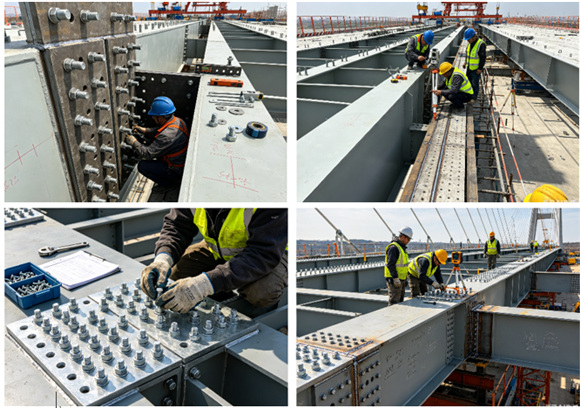

5. Structural Connection

Keywords

• High-strength  bolt connection

• Structural alignment

• Connection inspection

Description

Unlike conventional concrete bridges, steel structure bridges achieve their structural integrity through high-strength bolted connections, welding, and precise assembly of steel box girder segments.

Main activities include

• High-strength bolt installation

• Bolt torque inspection

• Segment alignment adjustment

• Weld and connection quality inspection

Key Considerations

• Ensure reliable structural connections

• Control assembly accuracy

• Maintain long-term structural performance

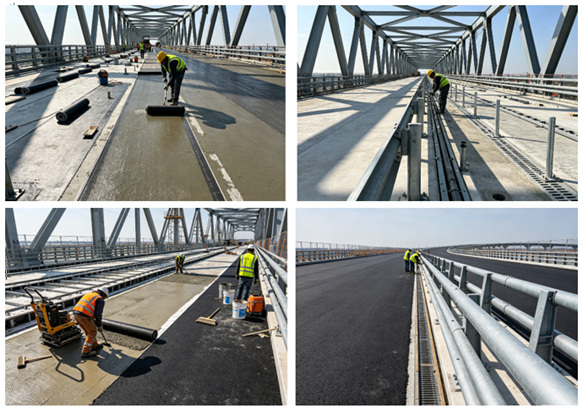

6. Deck Construction

Keywords

• Bridge deck system

• Waterproofing

• Pavement installation

Description

After the steel structure bridge has been assembled, deck construction completes the bridge surface and prepares it for vehicle operation.

Main activities include

• Deck slab installation or concrete topping

• Waterproofing system installation

• Drainage system construction

• Pavement and safety barrier installation

Key Considerations

• Improve bridge durability

• Ensure smooth driving conditions

• Complete finishing works efficiently

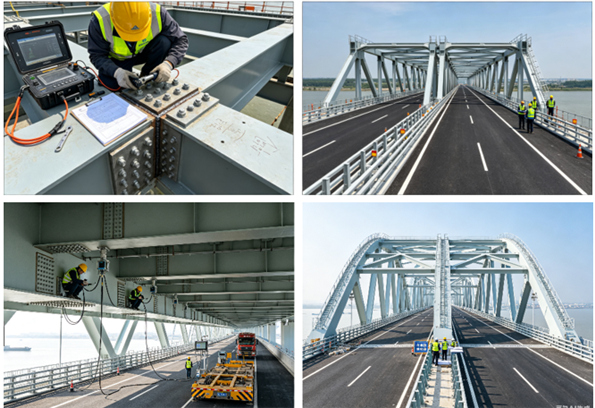

7. Completion

Keywords

• Structural inspection

• Load testing

• Bridge opening

Description

The final stage includes inspection, testing, and acceptance before the steel structure bridge is opened to traffic.

Main activities include

• Steel structure inspection

• Bolt connection verification

• Bridge load testing

• Final acceptance and traffic opening

Key Considerations

• Confirm structural safety

• Ensure construction quality

• Deliver a fast and reliable bridge solution
